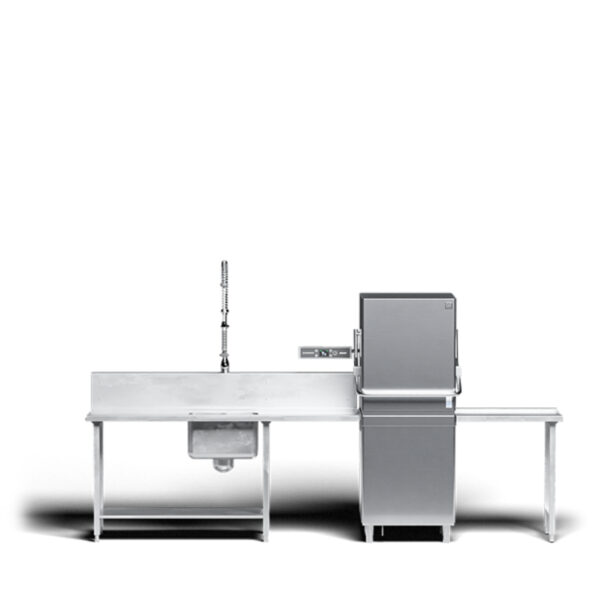

Hood Type Dish Washer – D2 Base

• Start-up time – Water-change: 18 min. – N/A
• Automatic energy save mode – Standard
• Meals per service: 70 – 210
• Glassware – 25 Glasses Ø 90 mm – 1 min.
• Dishware – 18 Dinner plates Ø 240 mm – 2 min.
• Flatware – Various cutlery – 3 min.
• Utensils – Whisks, ladles, bowls – 8 min.
• Dishware capacity: 18 dinner plates, 12 soup plates max. Ø 240 mm
• Glassware capacity: 25 glasses Ø 90 mm, 25 mugs Ø 90 mm
• Wash water temperature: Factory setting 60 °C (adjustable 35-65 °C)
• Rinse water temperature: Factory setting 85 °C (adjustable 65-85 °C)
• Sound pressure level – ISO 11203 norm: 59 dB(A)
• Water – Electricity per cycle: Base 2.2 L – 0.11 kWh
• Standard delivery voltage: 3N AC 380-415V 50 Hz: 16 A / 7.1 kW
• Heat dissipation – Total/Sensible/Latent: 4.8 kW / 1.6 kW / 3.2 kW
• Outer dimensions: W 655 x D 745 x H 1500/1950 (+50) mm
Make: Nordisk
Model: D2 Base
