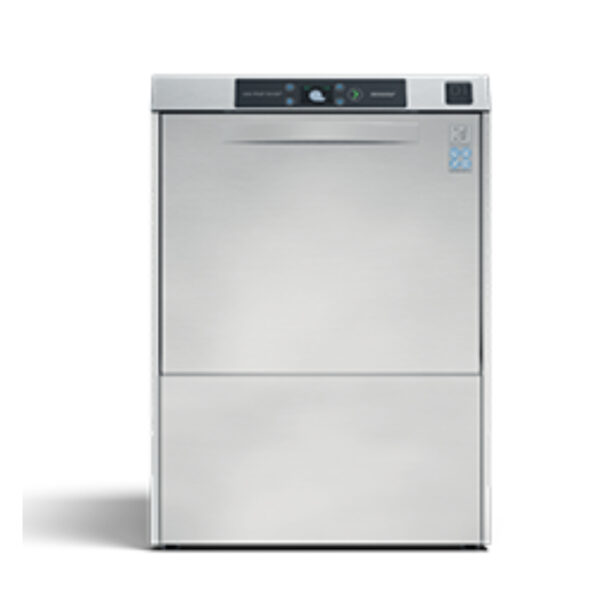

Under Counter Dish Washer – D1 Base

• Start-up time – Water-change: 11 min. – N/A
• Automatic energy save mode – Standard
• Meals per service: 30 – 100
• Glassware – 25 Glasses Ø 90 mm – 1.30 min.
• Dishware – 18 Dinner plates Ø 240 mm – 2 min.
• Flatware – Various cutlery – 3 min.
• Utensils – Whisks, ladles, bowls – 8 min.
• Dishware capacity: 18 dinner plates, 12 soup plates max. Ø 240 mm
• Glassware capacity: 25 glasses Ø 90 mm, 25 mugs Ø 90 mm
• Wash water temperature: Factory setting 60 °C (adjustable 35-65 °C)
• Rinse water temperature: Factory setting 85 °C (adjustable 65-85 °C)
• Sound pressure level – ISO 11203 norm: 56 dB(A)
• Water – Electricity per cycle: Base 2.2 L – 0.09 kWh
• Standard delivery voltage: 3N AC 380-415V 50 Hz 10 A / 5.05 kW
• Heat dissipation – Total/Sensible/Latent 1.6 kW / 0.7 kW / 0.9 kW
• Outer dimensions: 600x633x844mm
Make: Nordisk
Model: D1 Base
