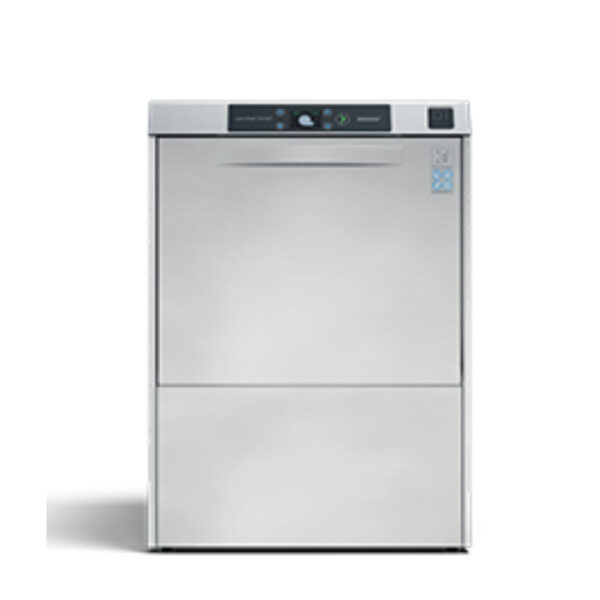

Under Counter Dish Washer – D1 Master

• Start-up time – Water change: 11 min. – 8 min.
• Automatic energy save mode – Standard
• Meals per service: 30 – 100
• Glassware – 25 Glasses Ø 90 mm – 1.30 min.
• Dishware – 18 Dinner plates Ø 240 mm – 2 min.
• Flatware – Various cutlery – 3 min.
• Utensils – Whisks, ladles, bowls – 8 min.
• Dishware capacity: 18 dinner plates, 12 soup plates max. Ø 240 mm
• Glassware capacity: 25 glasses Ø 90 mm, 25 mugs Ø 90 mm
• Water change program: Yes
• AutoClean wash tank program: Yes
• Wash water temperature: Factory setting 60 °C (adjustable 35-65 °C)
• Rinse water temperature: Factory setting 85 °C (adjustable 65-85 °C)
• Sound pressure level – ISO 11203 norm: 56 dB(A)
• Water – Electricity per cycle: 1.3 L – 0.07 kWh
• Standard delivery voltage: 3N AC 380-415V 50 Hz 10 A / 5.05 kW
• Heat dissipation – Total/Sensible/Latent: 1.8 kW / 0.6 kW / 1.2 kW
• Outer dimensions: 600x1072x844mmMake: Nordisk
Model: D1 Master
